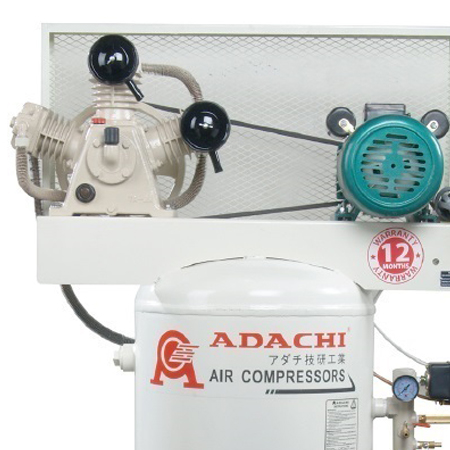

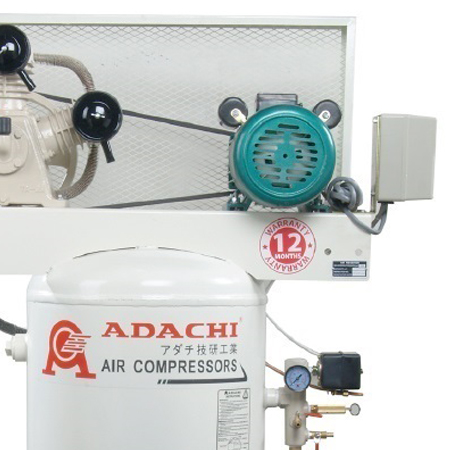

| Item No. | ADH – 303V – 180 |
|---|---|
| Motor (KW/HP) | 2.2 kW / 3.0 HP |
| Voltage | 230 V |
| Pressure | 14 bar / 170 PSI |
| Free Air Delivery | 303 L/min (10.7 CFM) |
| Cylinder Size | L65 * 2 x H51 * 1 |
| RPM | 980 RPM |
| Air Tank Capacity | 180 Liters |
| Dimensions (L x W x H) | 1140 x 700 x 1600 mm |
| Weight | 190 kg |
1. Multi-Cylinder High Efficiency: The multi-cylinder cluster setup ensures excellent thermodynamic efficiency, faster air compression, and reduced recovery waiting times.
2. Substantial Air Reserves: The generous 180-liter pressure tank stores high volumes of compressed air, lowering motor start-stop cycles to drastically cut down energy consumption.
3. Anti-Vibration Engineering: Built with a wide, dynamically balanced base frame alongside a solid 190kg net weight to heavily dampen resonance and keep operational noise low.
