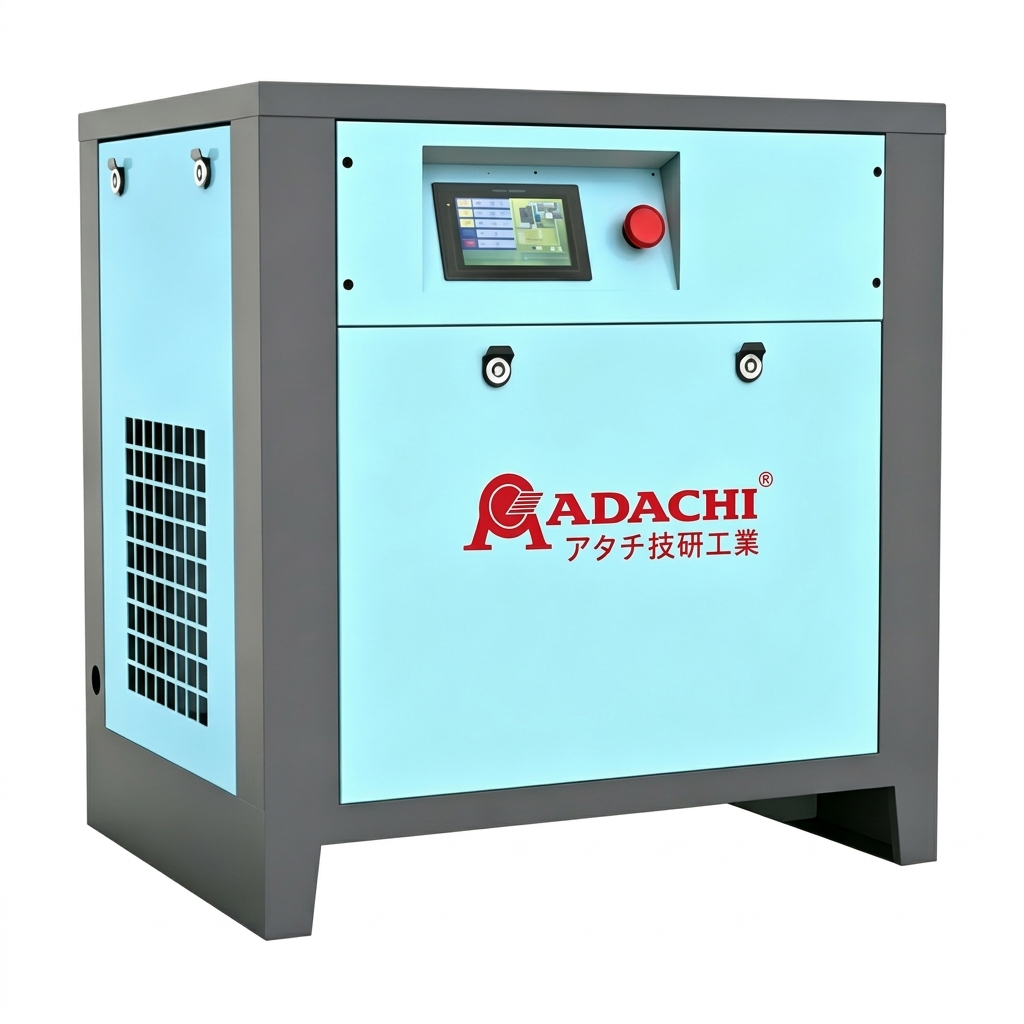

MA-15H SCREW COMPRESSOR

MA‑15H MA Series Screw Compressor (415V, 14 Bar High Pressure)

MA‑15H is 415V three‑phase variable‑speed screw air compressor with permanent magnet motor. High‑pressure version of the MA series, delivers stable 14 bar pressure for industrial applications requiring higher compressed‑air output.

✔
415V three‑phase power supply for industrial continuous operation

✔
Permanent Magnet variable‑speed motor for high energy‑saving efficiency

✔
14 bar high working pressure, 1.08 m³/min free air delivery

✔
Compact cabinet design, easy installation and routine maintenance

Specification	Details
Product Name	MA Series Variable Speed Screw Compressor
Model No.	MA‑15H
Motor KW / HP	11 / 15, Permanent Magnet Motor
Voltage	415V
Working Pressure	14 bar
Free Air Delivery F.A.D	1.08 m³/min
CFM	38
Amp	20
Cable Size	4.0
Connection	3/4″
Dimensions L × W × H	1170 × 730 × 998 mm
Weight	225 KG

Package Includes

•
MA‑15H Screw Air Compressor Main Unit

•
Built‑in permanent magnet variable‑speed motor

•
Operation Manual

Recommended Applications: Industrial workshops, high‑pressure pneumatic tools, production lines requiring 14 bar compressed air, facilities with 415V three‑phase power supply.
