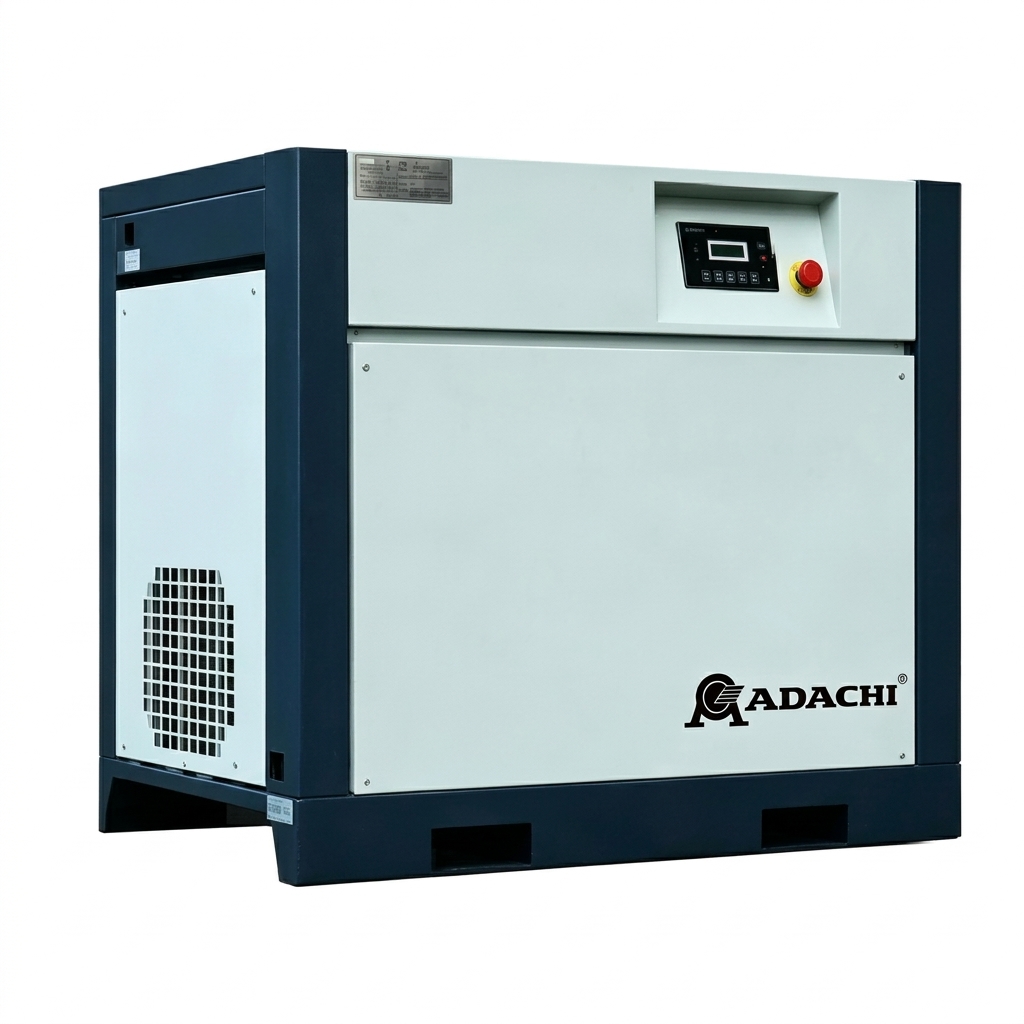

RH-07 SCREW AIR COMPRESSOR

RH‑07 RH‑Type Screw Compressor (14 Bar Belt Driven)

RH‑07 is a belt‑driven screw air compressor designed for 14 bar high‑pressure applications. Compact and reliable, it delivers stable compressed air for industrial pneumatic tools and equipment.

✔
Belt‑driven screw compressor mechanism for reliable power transmission

✔
14 bar stable working pressure for high‑pressure pneumatic tools

✔
Compact cabinet design, suitable for limited workshop space

✔
415V three‑phase power input for industrial operation

Specification	Details
Product Name	RH‑Type Screw Compressor
Model No.	RH‑07
Motor KW / HP	5.5 / 7.5
Voltage	415 V
Working Pressure	14 bar
Free Air Delivery F.A.D	0.46 m³/min
CFM	16.5
Amp	10.5
Cable Size	2.5
Connection	1/2″
Dimensions L × W × H	800 × 700 × 930 mm
Weight	180 KG

Package Includes

•
RH‑07 Screw Air Compressor Main Unit

•
Belt‑driven screw assembly

•
Operation Manual

Recommended Applications: Industrial workshops, high‑pressure pneumatic tools, small‑to‑medium production lines, sites requiring stable 14 bar compressed air.
