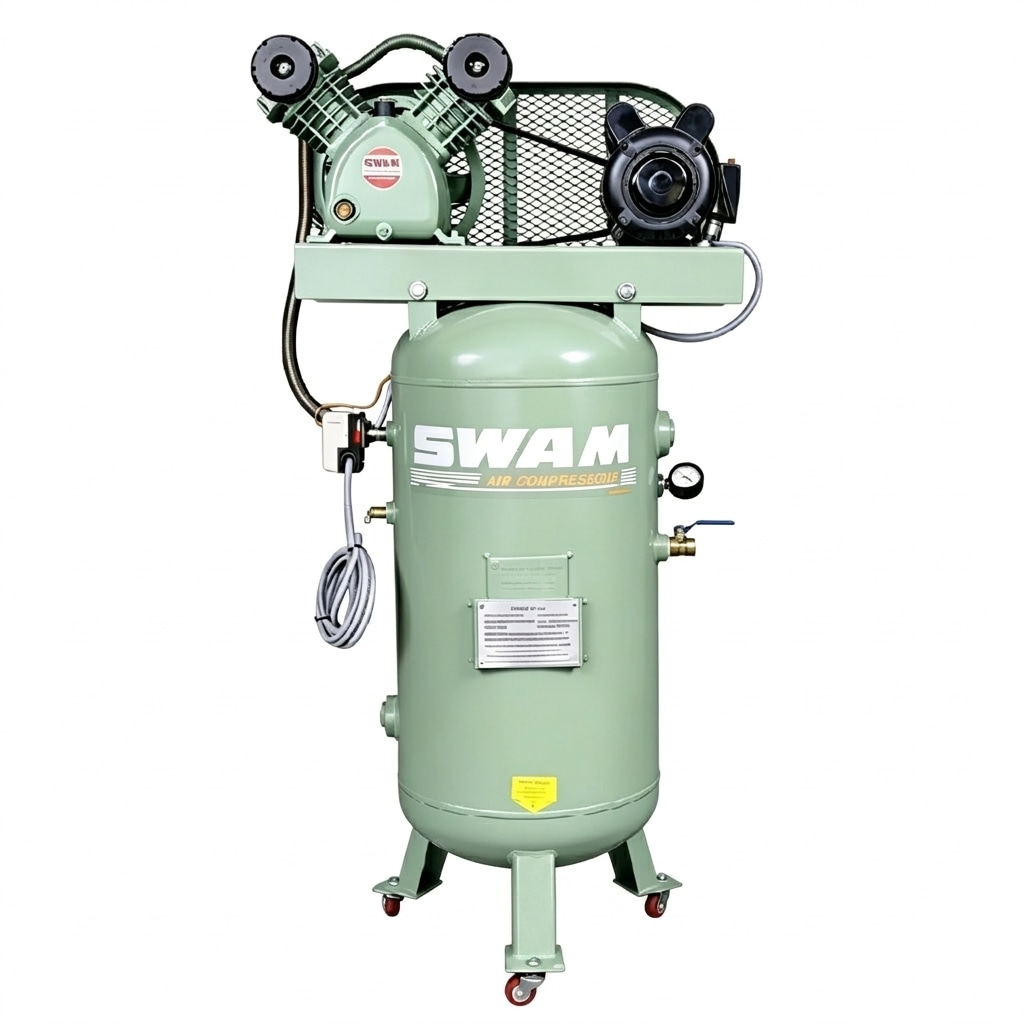

The SWAM SVP-202V Air Compressor is a durable vertical low pressure air compressor. It is equipped with a 1.5kW / 2.0HP motor and 100L vertical air tank, delivering stable compressed air for small workshops, pneumatic tools and light industrial applications.
✓1.5 kW / 2.0 HP motor, 230V single phase power supply
✓8 bar / 115 PSI working pressure, 225 L/min free air delivery
✓65 mm × 2 cylinder configuration, 880 RPM
✓100 Liter vertical air tank with swivel casters
✓Vertical tank design saves valuable floor space for compact workshops
| Specification | Details |
|---|---|
| Product Name | Air Compressor (Low Pressure) |
| Model No. | SVP-202V |
| Motor KW / HP | 1.5 / 2.0 |
| Voltage | 230V |
| Working Pressure | 8 bar (115 PSI) |
| Free Air Delivery | 225 l/min |
| CFM | 7.95 |
| Cylinder Diameter | 65 mm × 2 |
| RPM | 880 |
| Air Tank Capacity | 100 liter |
| Item No. | Dimensions L × W × H | Weight |
|---|---|---|
| SVP-202V | 650 × 460 × 1450 mm | 44 kg |
| Feature | Description |
|---|---|
| Vertical Space-saving Design | Vertical tank structure occupies less floor area |
| Low Pressure Operation | 8 bar working pressure for light-duty pneumatic operations |
| Mobile Casters | Equipped with swivel wheels for easy relocation |
| Simple Maintenance | Mechanical structure is easy to inspect and service |
Package Includes
●SVP-202V Air Compressor Main Unit
●Standard Pressure Gauge and Safety Valve Assembly
●Operation Manual
Recommended Applications: Suitable for small workshops, home garages, light pneumatic tools and simple spray painting work.
