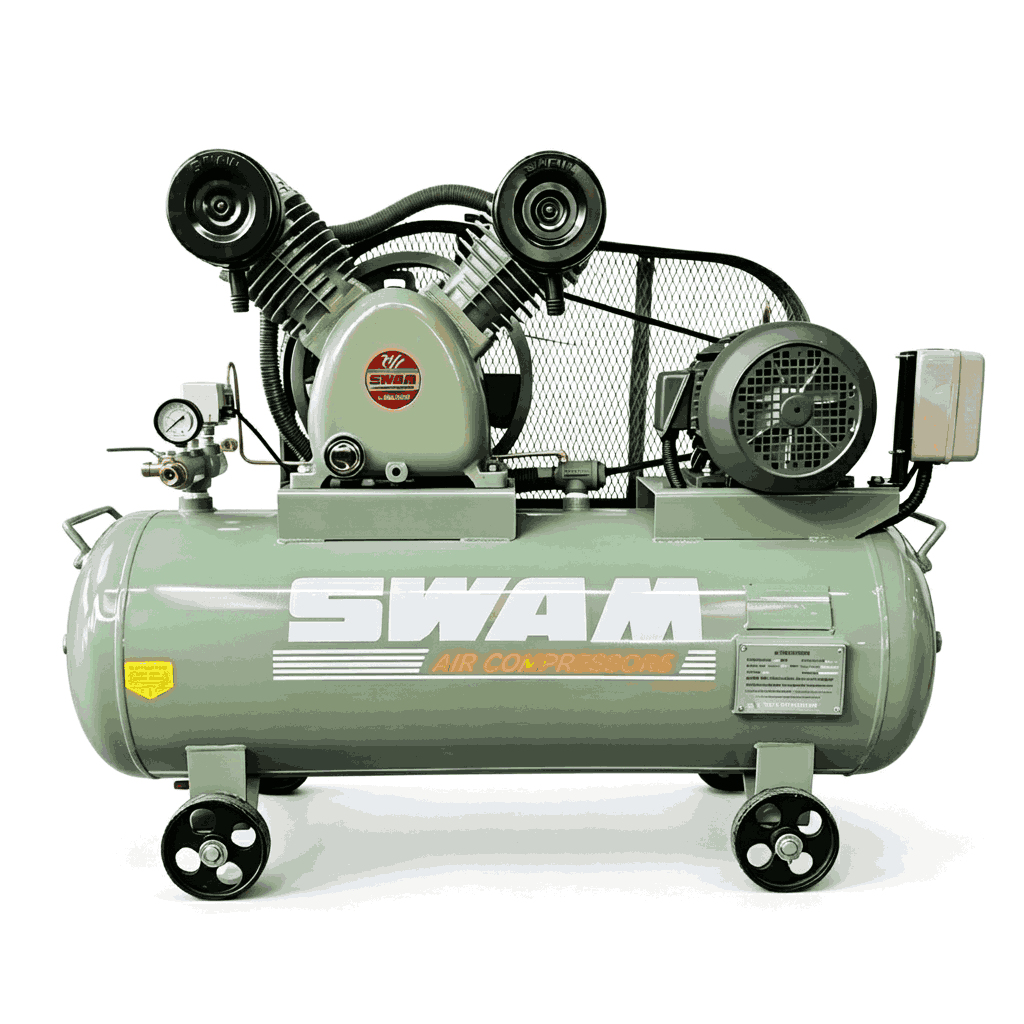

SVP-203 AIR COMPRESSORS

The SWAM SVP-203 Air Compressor is a heavy-duty horizontal low pressure air compressor, built with wheels for convenient mobility. Powered by a 2.2kW / 3.0HP motor and fitted with a large 155L air tank, it delivers consistent compressed air for workshop pneumatic tools, painting and medium-duty industrial applications.

✓2.2 kW / 3.0 HP motor, 415V three phase power supply

✓8 bar / 115 PSI working pressure, 355 L/min free air delivery

✓82 mm × 2 cylinder configuration, 650 RPM

✓155 Liter large horizontal air tank with mobile wheels

✓Robust horizontal mobile design, easy to reposition in factory or workshop

Specification Details
Product Name Air Compressor (Low Pressure)
Model No. SVP-203
Motor KW / HP 2.2 / 3.0
Voltage 415V
Working Pressure 8 bar (115 PSI)
Free Air Delivery 355 l/min
CFM 12.5
Cylinder Diameter 82 mm × 2
RPM 650
Air Tank Capacity 155 liter
Item No. Dimensions L × W × H Weight
SVP-203 1350 × 450 × 840 mm 135 kg
Feature Description
Horizontal Mobile Design Equipped with heavy-duty wheels for easy movement around factory floor
Low Pressure Operation 8 bar working pressure, reliable for continuous medium-duty air jobs
Large Tank Stable Air Output 155L air reservoir maintains steady airflow for multiple pneumatic tools
Easy Maintenance Simple mechanical construction for convenient routine inspection and service

Package Includes

●SVP-203 Air Compressor Main Unit

●Standard Pressure Gauge and Safety Valve Assembly

●Operation Manual

Recommended Applications: Suitable for medium workshops, auto repair shops, spray painting and continuous medium-duty pneumatic operations.
