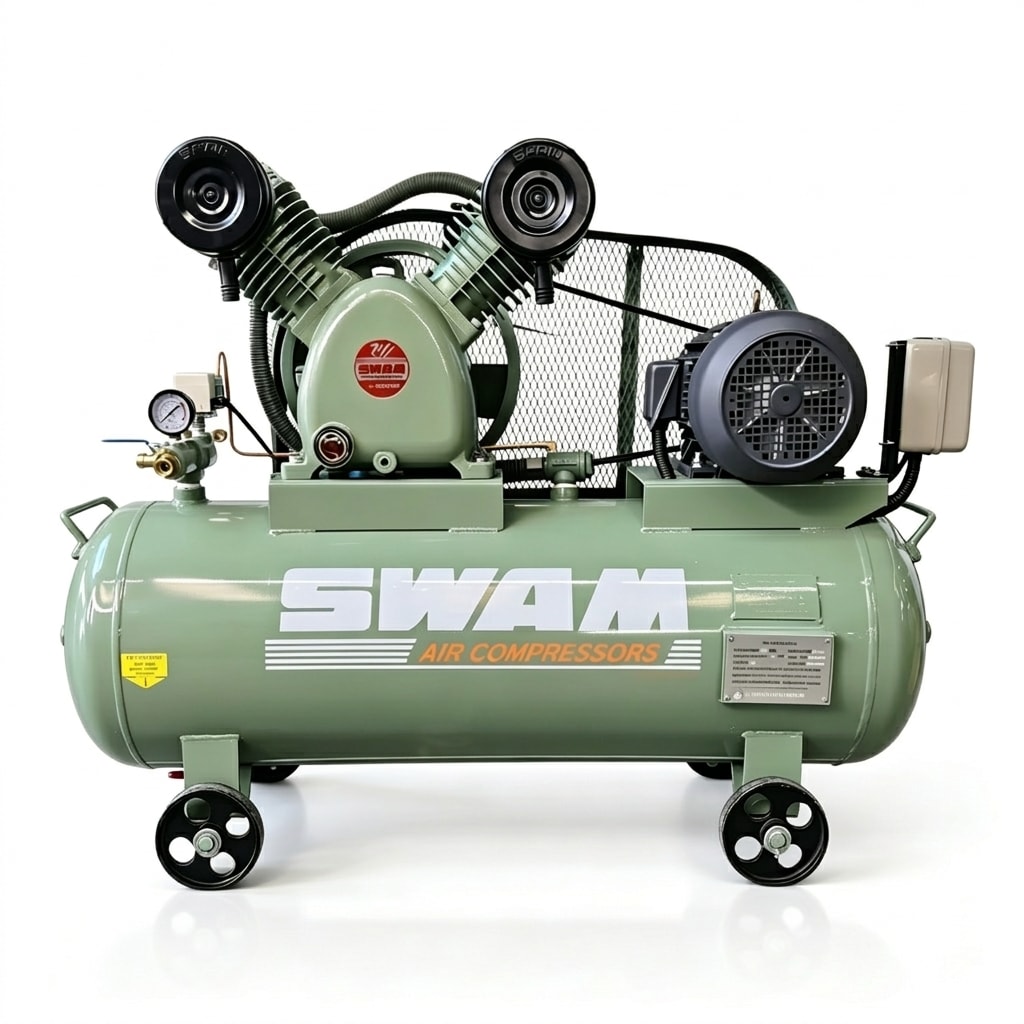

The SWAM SVP-205 Air Compressor is a heavy-duty horizontal low pressure air compressor fitted with mobility wheels. It comes with a 4.0kW / 5.5HP 415V motor paired with a large 155L air tank, supplying high volume stable compressed air for medium workshops, continuous pneumatic tools and industrial light production work.
✓4.0 kW / 5.5 HP motor, 415V three phase power supply
✓8 bar / 115 PSI working pressure, 545 L/min free air delivery
✓95 mm × 2 cylinder configuration, 620 RPM low speed operation
✓155 Liter large horizontal air tank with transport wheels
✓Low RPM design reduces wear, extends service life for continuous heavy duty use
| Specification | Details |
|---|---|
| Product Name | Air Compressor (Low Pressure) |
| Model No. | SVP-205 |
| Motor KW / HP | 4.0 / 5.5 |
| Voltage | 415V |
| Working Pressure | 8 bar (115 PSI) |
| Free Air Delivery | 545 l/min |
| CFM | 19.30 |
| Cylinder Diameter | 95 mm × 2 |
| RPM | 620 |
| Air Tank Capacity | 155 liter |
| Item No. | Dimensions L × W × H | Weight |
|---|---|---|
| SVP-205 | 1400 × 520 × 980 mm | 170 kg |
| Feature | Description |
|---|---|
| Heavy Duty Horizontal Structure | Robust tank and pump assembly for long-time continuous operation |
| Low Pressure Stable Output | 8 bar constant pressure for multiple pneumatic tools running at once |
| Large 155L Air Receiver | Stores abundant air volume to reduce frequent motor start-stop |
| Wheeled Mobility | Transport wheels allow moving the compressor around workshop areas |
Package Includes
●SVP-205 Air Compressor Main Unit
●Standard Pressure Gauge and Safety Valve Assembly
●Operation Manual
Recommended Applications: Medium industrial workshops, continuous pneumatic equipment, sand blasting, heavy air tools and batch spray painting.
