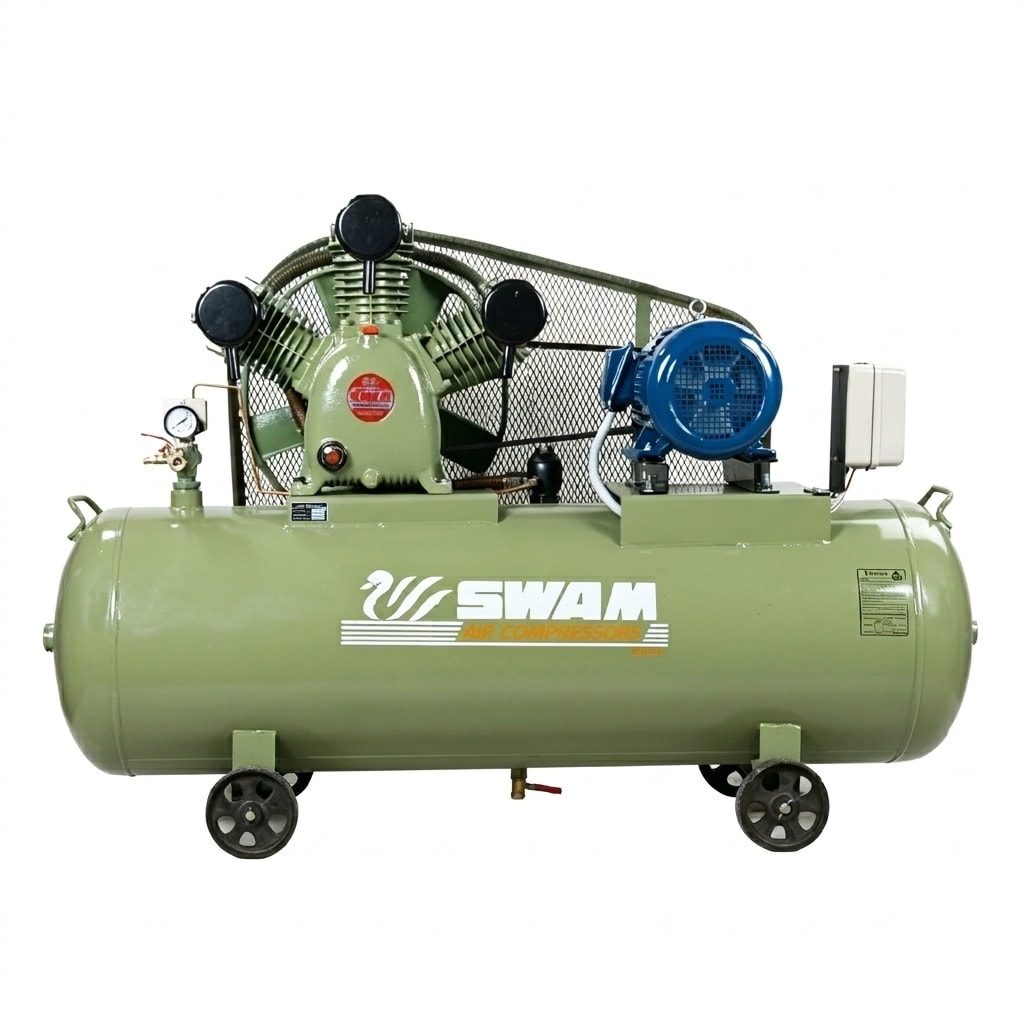

SWP-307 AIR COMPRESSORS

The SWAM SWP-307 Air Compressor is a heavy-duty horizontal low pressure air compressor with transport wheels. It features a powerful 5.5kW /7.5HP 415V motor and a huge 340L air tank, delivering large volume stable compressed air for heavy industrial workshops, multi-tool simultaneous operation and continuous production work.

✓5.5 kW / 7.5 HP motor, 415V three phase power supply

✓8 bar / 115 PSI working pressure, 872 L/min free air delivery

✓82 mm × 3 triple cylinder configuration, 850 RPM operation

✓340 Liter large horizontal air tank fitted with transport wheels

✓Triple cylinder design provides high air output, stable pressure for heavy continuous industrial use

Specification Details
Product Name Air Compressor (Low Pressure)
Model No. SWP-307
Motor KW / HP 5.5 / 7.5
Voltage 415V
Working Pressure 8 bar (115 PSI)
Free Air Delivery 872 l/min
CFM 31
Cylinder Diameter 82 mm × 3
RPM 850
Air Tank Capacity 340 liter
Item No. Dimensions L × W × H Weight
SWP-307 1470 × 650 × 1150 mm 240 kg
Feature Description
Heavy-Duty Horizontal Frame Robust tank and pump assembly for long continuous operation
Triple Cylinder Pump High air delivery rate to support multiple pneumatic tools working simultaneously
Large 340L Air Receiver Massive air storage reduces frequent cycling and stabilizes air pressure
Wheeled Mobility Equipped with transport wheels to move compressor around workshop

Package Includes

●SWP-307 Air Compressor Main Unit

●Standard Pressure Gauge and Safety Valve Assembly

●Operation Manual

Recommended Applications: Heavy industrial workshops, mass spray painting, sand blasting, multi pneumatic tools and continuous production lines.
