SWP-415 AIR COMPRESSORS

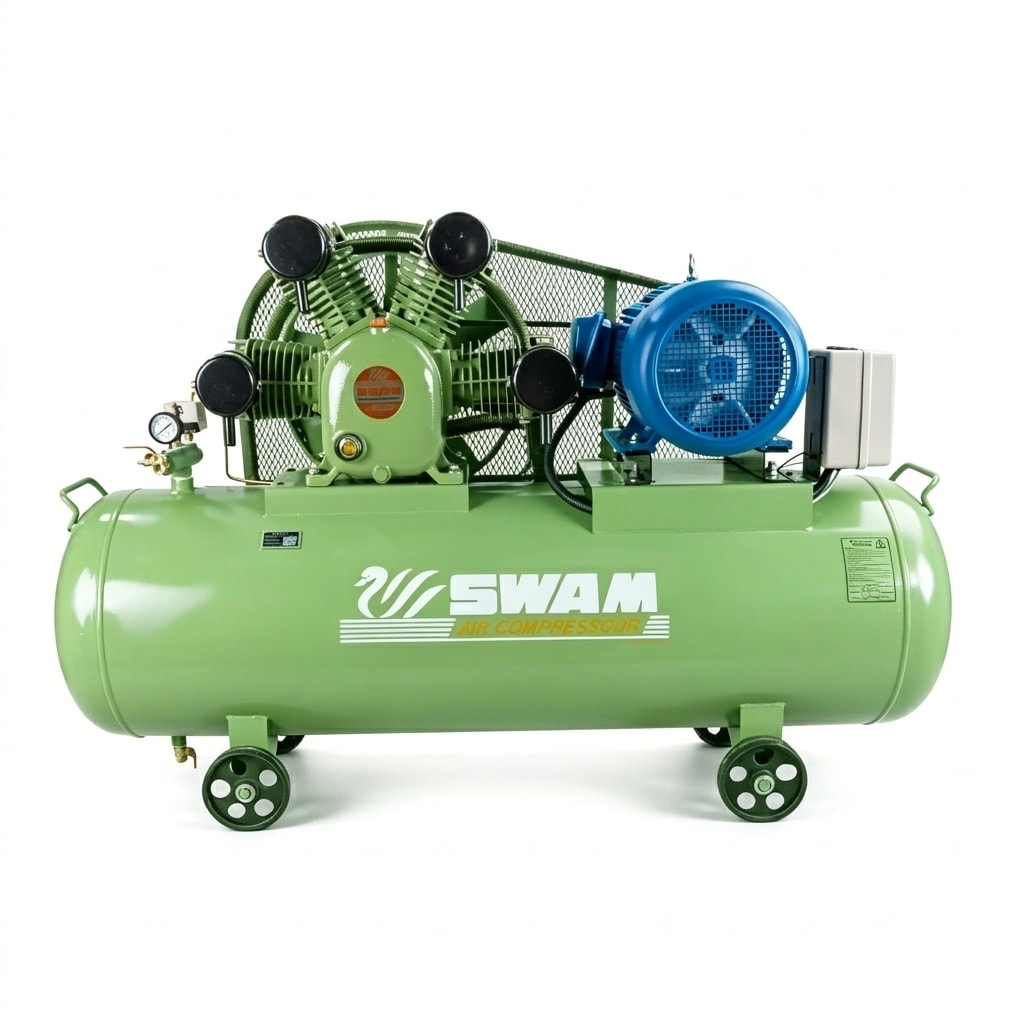

The SWAM SWP-415 Air Compressor is a heavy-duty horizontal low pressure air compressor fitted with transport wheels. It adopts a powerful 11kW /15HP 415V three-phase motor and large 340L air tank, delivering massive air volume and stable compressed air for heavy industrial workshops, simultaneous operation of multiple pneumatic tools and continuous heavy production applications.

✓11 kW / 15 HP motor, 415V three phase power supply

✓8 bar / 115 PSI working pressure, 1480 L/min free air delivery

✓95 mm × 4 four-cylinder configuration, 850 RPM operation

✓340 Liter large horizontal air tank equipped with transport wheels

✓Four large cylinder design provides ultra-high air output, maintains steady pressure during long heavy-duty industrial running

Specification Details
Product Name Air Compressor (Low Pressure)
Model No. SWP-415
Motor KW / HP 11 / 15
Voltage 415V
Working Pressure 8 bar (115 PSI)
Free Air Delivery 1480 l/min
CFM 52.30
Cylinder Diameter 95 mm × 4
RPM 850
Air Tank Capacity 340 liter
Item No. Dimensions L × W × H Weight
SWP-415 1835 × 650 × 1200 mm 280 kg
Feature Description
Heavy-Duty Horizontal Frame Heavy built tank and pump assembly for long continuous working cycles
Four Large Cylinder Pump Extremely high air delivery rate to run multiple heavy pneumatic tools at once
Large 340L Air Receiver Huge air storage reduces motor start-stop frequency and stabilizes air pressure
Wheeled Mobility Built transport wheels for convenient relocation inside workshop

Package Includes

●SWP-415 Air Compressor Main Unit

●Standard Pressure Gauge and Safety Valve Assembly

●Operation Manual

Recommended Applications: Large industrial factories, mass spray painting, heavy sand blasting, multiple heavy-duty pneumatic tools and continuous production lines.
